Name: Flatpack S 1U 5R 48Vdc DC Power System Eltek 19" 1U Rack Mount Rectifier Shelf
Brand: Beijing Ding Ding Future Technology Co.Ltd
SKU: Система Flatpack S 1U 5R, 48 В постоянного тока
Price: 15000 USD
Availability: InStock

Характеристики Галерея Характер продукции Оценки и отзывы Спросите цитату

Характеристики

Номер модели: Система Flatpack S 1U 5R, 48 В постоянного тока

Артикул: CTOS0501.XXX

Напряжение: 185 В переменного тока/В постоянного тока-305 В переменного тока/300 В постоянного тока

Текущий: 21А

Частота: 45-66hz

Выходное напряжение: 28VDC

Контроллер: 1 шт. Контроллер Smartpack S ( 242100.410)

Модуль: Flatpack2 48/1800HE ( 241122.125)

Выделить:

1U rack mount rectifier shelf

48Vdc DC power system

Eltek telecom power shelf

Основная информация

Фирменное наименование: Eltek

Сертификация: CE

Номер модели: Система Flatpack S 1U 5R, 48 В постоянного тока

Оплата и доставка Условия

Упаковывая детали: Картонные коробки

Время доставки: 1-2 недели

Условия оплаты: Т/Т

Поставка способности: 500 комплектов в месяц

Галерея

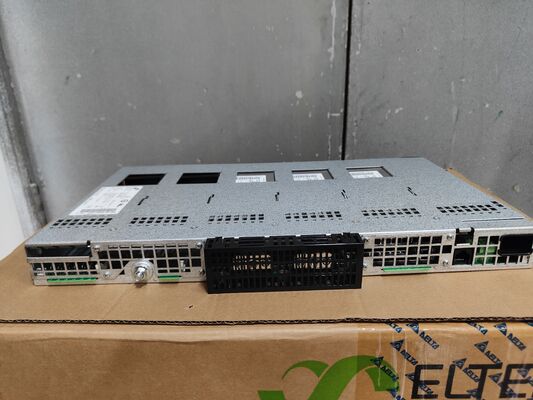

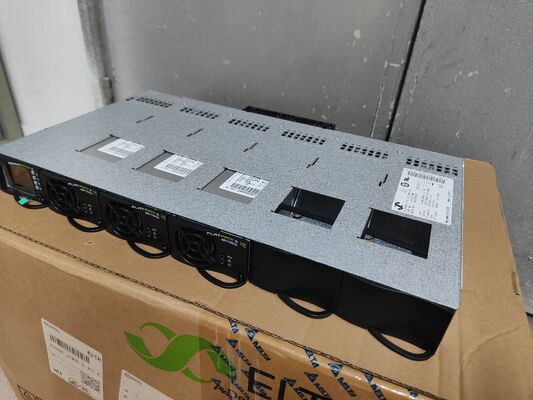

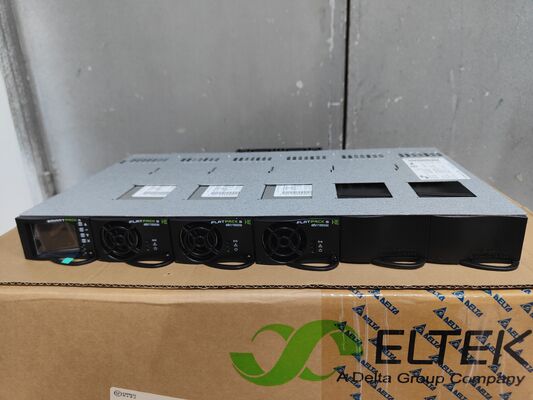

Flatpack S 1U 5R 48Vdc DC Power System Eltek 19" 1U Rack Mount Rectifier Shelf

Характер продукции

Flatpack S 1U 5R 48Vdc DC Power System Eltek 19" 1U Rack Mount Rectifier Shelf

Product Overview

Upgrade your power supply with the Eltek Flatpack S 1U 5R 48Vdc System! This space-saving 1U rack power shelf delivers stable 48V DC power with max 9kW capacity, 5 rectifier slots, and included Smartpack S controller and 3x 1800HE modules. Perfect for telecom sites, data centers, and industrial environments, it offers high efficiency, easy expansion, and long-term reliability. Ready to ship and easy to install - contact us today to get your Eltek power system!

Key Features

Ultra-Compact & Shallow Design: Only 210mm depth, ideal for shallow cabinets and space-constrained installations.
High Power Density & Efficiency: Up to 95.5% efficiency, reducing energy cost and heat generation.
Flexible & Expandable: 5-module slot design, supports easy capacity expansion.
Advanced Monitoring & Control: Compatible with Smartpack S, Smartpack 2, and Compack controllers for full system supervision.
Marine & Offshore Approved: Meets rigorous offshore and marine specifications for safe, stable operation.
Comprehensive Protection: Reverse current protection, SIL3 rated output versions available, FET output protection.
Wide Application: Perfect for communication systems, GMDSS, emergency lighting, SAS systems, control & protection, and various offshore power demands.

Technical Specifications

Parameter	Specification
Product Name	Flatpack S 1U 5R 48Vdc System
Brand	Eltek
Part Number (P/N)	CTOS0501.XXX
Form Factor	19" standard rack-mount, 1U height
Rated System Voltage	48V DC
Max. System Power	9kW (with full 5 rectifier modules)
Rectifier Module Slots	5 slots
Standard Configuration	3 x Flatpack2 48/1800HE Rectifier Modules (1800W each)
Controller Included	1 x Smartpack S Controller (P/N: 242100.410)
Included Accessories	2 x Cover Panels
Typical System Efficiency	Up to 95.5%
Application Scenarios	Telecom sites, data centers, industrial control, marine & offshore power systems
