Powering Base Stations in Extreme Cold: Constant Performance of Flatpack2 Rectifiers at -40°C

In high-latitude regions such as Northern Europe or high-altitude areas in South America, low-temperature power limitation is a critical pain point leading to base station outages. When ambient temperatures drop below -20°C, standard rectifier modules often suffer from start-up failures or significant power derating due to component characteristic shifts. This article explores how the Eltek Flatpack2 24/1800 HE ensures power consistency in extreme cold through parametric design.

Challenges for Rectifier Modules in Frigid Conditions

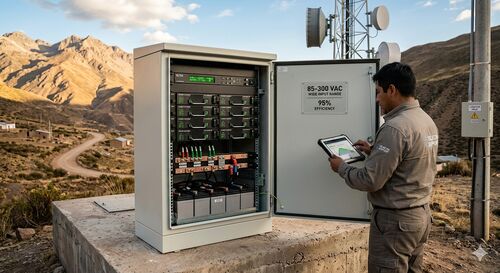

In outdoor cabinet scenarios, power systems face physical stress from extreme temperature fluctuations.

· Start-up Failure Risk: Conventional electrolytic capacitors experience a surge in Equivalent Series Resistance (ESR) at low temperatures, potentially preventing control circuits from establishing voltage.

· Material Embrittlement: Differences in thermal expansion coefficients across materials can compromise solder joint reliability during freeze-thaw cycles.

· Power Derating: To protect internal circuitry, many modules actively limit output current at low temperatures, leaving base station batteries unable to charge properly.

Key Technical Parameter: -40°C to +75°C Wide Operating Range

The core advantage of the Eltek Flatpack2 24/1800 HE lies in its Operating Temperature range of -40°C to +75°C. This is supported by specific engineering processes:

· Industrial-Grade Component Selection: Key internal capacitors and semiconductors meet full-rated output standards down to -40°C.

· Topology Optimization: Utilizing Patented HE Technology (High Efficiency), the module generates minimal waste heat at 95% peak efficiency, reducing component aging caused by uneven local thermal stress.

· Wide Input Adaptability: Even in remote areas with unstable grids, the module maintains stable conversion across a wide range of 85 - 300 VAC.

Stability Through Intelligent Current Sharing and Parallel Connection

When expanding base stations, parallel operation of multiple modules is essential. Flatpack2’s Current Sharing technology excels in extreme environments:

1. High-Precision Sharing: Current imbalance is kept within ±5% of the maximum current across a 10% to 100% load range.

2. Hot Plug-in Protection: Supports live expansion with built-in inrush current limiting, ensuring no voltage disturbances to the existing DC bus during maintenance.

3. MTBF > 300,000 Hours: Per Telcordia SR-332 standards, this reliability ensures long-term maintenance-free operation, even at unmanned sites in the Arctic Circle.
